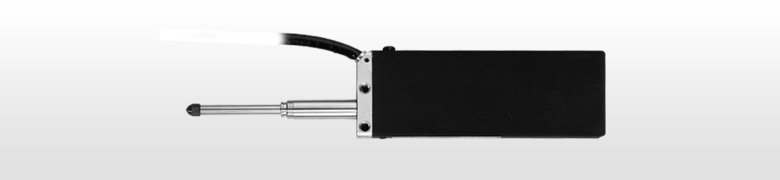

Digital Gauge

DL330B

Features

Slim, compact gauges

  • Magnetic principle
  • Measuring range: 30 mm / 1.18
  • Resistant to dust and vibrations.
  • Compact size ideal for designing into machines.
  • A/B phase output by open collector
  • Measuring range:10 mm / 0.39
  • Specifications

    # Specifications -
    1 Model DL330B
    2 Measuring range 30mm
    3 Maximum resolution 10μm
    4 Accuracy(at 20℃) 10μm
    5 Measuring force(at 20℃) 1.5Nor less
    6 Output signal A/B phase by NPN open collector (12 VDC, 10 mA or less)
    7 Maximum response speed*1 120m/min
    8 Operating temperature 0~50℃
    9 Storage temperature -10~60℃
