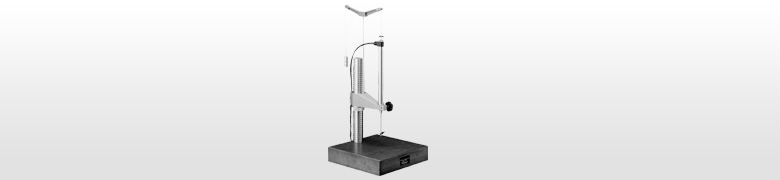

Digital Gauge

DK110

Features

High accuracy, rugged gauges. Suitable for installation on machine.

  • Measuring range: 205 mm / 8.07
  • Accuracy: 6 μm (DK205PR5)
  • Maximum resolution :0.5 μm Excellent resistance to workshop conditions.
  • Magnet feeler (205BP)
  • Direct connected to A/B quadrature counter
  • Specifications

    # Specifications -
    1 Model DK110
    2 Output A/B/Z phase voltage-differential line driver output(compliant with EIA-422)
    3 Maximum resolution※1 0.5 μm
    4 Measuring range 110 mm
    5 Accuracy (at 20℃) 4 μm
    6 Reference point One location (at 5 mm position of spindle movement)
    7 Maximum response speed 250 m/min
    8 Vibration resistance(10 ~ 2000 Hz) 150 m/s2
    9 Impact resistance (11 ms) 1500 m/s2
