Laser Scales

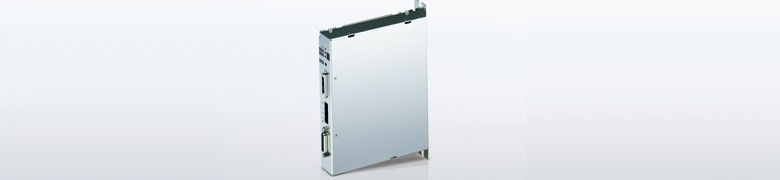

BD95
Laserscale easily achieves measurement and control by ultra high resolution less than 1nm.
Sinusoidal wave of approx.138nm signal period is generated by a hologram scale with high diffraction efficiency and a high resolution detecting head based on grating interference method, strong against disturbance by air pressure or current, plus easy to install (BS series).
Features
Interpolator for A/B quadrature of 4.3nm to 34.5nm
High resolution: 4.3 to 34.5nm (depends on the number of splits)
High response speed: 400mm/s
DC offset, gain, phase automatic conditioning
32 bit binary output by data request input (T14, T16, T17)
Specifications
| # | Specifications | Specifications |
|---|---|---|
| 1 | Model | BD95-T13 / BD95-T14 |
| 2 | Pitch compensation function | AB quadrature 1 only A round-off error of 1 resolution occurs. |
| 3 | Power supply | DC＋24V±1V |
| 4 | Consumption current(When scale is connected) | 400mA(max.) |
| 5 | Operating temperature | 0～50℃ |
| 6 | Storage temperature | －10～60℃ |
| 7 | Dimensions | 172(W)×144(D)×32(H)mm |
| 8 | Mass | Approx. 0.8kg |
