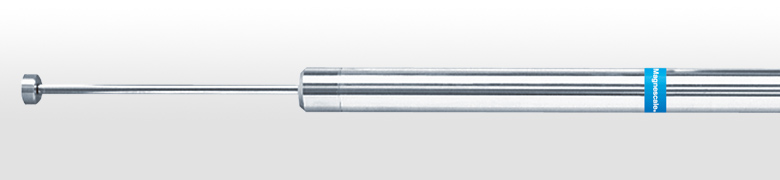

Digital Gauge

DK155

Features

High accuracy, rugged gauges. Suitable for installation on machine.

  • Measuring range: 155 mm / 6.1
  • Accuracy: 5 μm (DK155PR5)
  • Maximum resolution : 0.5 μm Excellent resistance to workshop conditions.
  • Magnet feeler (DG155BP)
  • High measuring force (10PR5/10PLR5)
  • Direct connected to A/B quadrature counter
  • Specifications

    # DF805S series Specifications -
    1 Model DK155
    2 Output A/B/Z phase voltage-differential line driver output(compliant with EIA-422)
    3 Maximum resolution※1 0.5 μm
    4 Measuring range 155 mm
    5 Accuracy (at 20℃) 5 μm
    6 Reference point One location (at 5 mm position of spindle movement)
    7 Maximum response speed 250 m/min
    8 Vibration resistance(10 ~ 2000 Hz) 150 m/s2
    9 Impact resistance (11 ms) 1500 m/s2
