Laser Scales

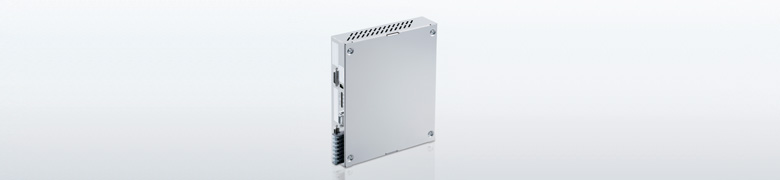

BD96
Laserscale easily achieves measurement and control by ultra high resolution less than 1nm.
Sinusoidal wave of approx.138nm signal period is generated by a hologram scale with high diffraction efficiency and a high resolution detecting head based on grating interference method, strong against disturbance by air pressure or current, plus easy to install (BS series).
Features
Maximum resolution of 17pm when combined with the BS series. Supporting various serial and binary outputs.
High.speed response : 1,100mm/s (When connected with BL series) 700mm/s (When connected with BH series) 400mm/s (When connected with BS series) Various serial or binary outputs
Maximum resolution : 0.4nm (When connected with BL series) 31pm (When connected with BH series) 17pm (When connected with BS series
High.speed response : 1,100mm/s (When connected with BL series) 700mm/s (When connected with BH series) 400mm/s (When connected with BS series) Various serial or binary outputs
Maximum resolution : :0.4nm (When connected with BL series) 31pm (When connected with BH series) 17pm (When connected with BS series)
Specifications
| # | Specifications | Specifications |
|---|---|---|
| 1 | Resolution | 17pm(when connected BS series), 31pm(when connected BH series), 0.4nm(when connected BL series) |
| 2 | Maximum response speed | 400mm/s(when connected BS series), 700mm/s(when connected BH series), 1,100mm/s(when connected BL series)※1,000mm/s(J type) |
| 3 | Number of divisions | 025 : 256, 051:512, 040:400, 050:500, 100:1,000, 200:2,000, 400:4,000, 800:8,000 |
| 4 | Alarm | When exceeding the maximum response speed or when the laser signal level is too low (disconnection ); LED lights up |
| 5 | Input signal compensation | DC Offset/amplitude/phase |
| 6 | Power supply | DC ＋5V±5% DC ＋12V±5% DC -12V± |
| 7 | Operating temperature | 0～＋40℃ |
| 8 | Storage temperature | -10～＋50℃ |
