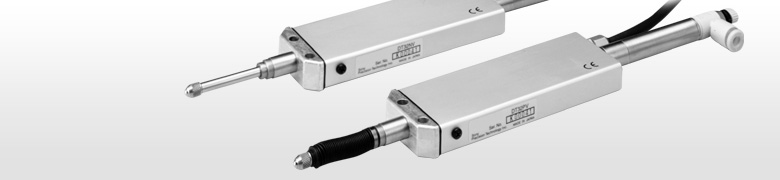

Digital Gauge

DT32

Features

Compact and slim gauges

  • Excellent resistance to workshop conditions (DT512P: IP64)
  • Resistant to oil, water, dust, vibration, and shock.
  • Measuring range: 32mm/1.26
  • Accuracy:10μm
  • Maximum resolution :5μm
  • Magnet feeler (205BP)
  • Compact size ideal for designing into machines:DT32 : 12(D) x 35(W) x 218(H)mm/ 0.47" x 1.38" x 8.58"
  • Pneumatic push type are also available
  • Guaranteed number of strokes :5 million
  • Main applications :Automatic sorting of parts
  • Specifications

    # Specifications -
    1 Model DT32N / DT32NV / DT32P / DT32PV
    2 Measuring range 32mm
    3 Resolution 5μm
    4 Accuracy(at 20℃) 10μm
    5 Operating temperature 0℃~50℃
    6 Storage temperature -10℃~60℃
    7 Cable length 2m
    8 Diameter of stem φ8(0~0.015)mm
    9 Feeler Feeler tipped with 3 mm dia. steel ball with M2.5p x 0.45 screw on fitting end
