Digital Gauge

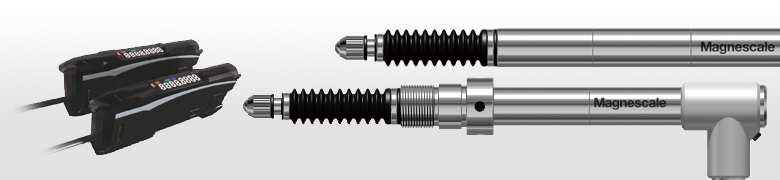

DF812S/MF10

(Digital Gauges) In an automobile, an electronic instrument cluster, digital instrument panel or digital dash for short, is a set of instrumentation, including the speedometer, that is displayed with a digital readout rather than with the traditional analog gauges

Features

Slim, compact, and having a high resolution of 0.1 μm maximum The maximum response speed has also further advanced.

  • Measuring range: 12mm
  • Accuracy: 1 μm
  • Maximum resolution: 0.1 μm
  • Maximum response speed: 80 m/min
  • Built-in reference point
  • Excellent resistance to water and oil
  • Adopts a flexing-resistance cable
  • Specifications

    # DF805S series Specifications -
    1 Model DF812SR、DF812SFR /DF812SLR、DF812SFLR
    2 Measuring range 12mm
    3 Resolution 0.1μm
    4 Accuracy (at 20°C/68°F) 1μm
    5 Measuring force(at 20℃/68°F)d Upward : 0.4±0.3N / Horizontal : 0.5±0.3N / Downward : 0.6±0.3N
    6 Maximum response speed 80m/min
    7 Reference point at 1±0.5 mm position of spindle movement
    8 Reference point response speed 80m/min
    9 Output Dedicated serial communication protocol
